Finite Atari Machine

Finding Atari Games in Randomly Generated Data

This project generated around 30 Billion individual 4kB files of random data. These files were winnowed down to about 10,000 through some heuristics gleaned from the complete collection of Atari ROM files. Finally, a classifier system scanned them using an Atari 2600 emulator to see if any of these random files were actually an Atari game. This project answers a question no one asked, no one wanted, and is a massive waste of resources: What if I shove a billion monkeys in a GPU and asked them to write a game for the Atari 2600?

Thanks to advances in GPUs, AI, and machine learning, we can now (very quickly) write a Python script that dumps garbage into 4KB ROMs and asks, “does this look like a game?” This isn’t nostalgia, because my first console was an NES. This is about exploring something unimaginably vast and seeing if anything weird falls out.

Results First

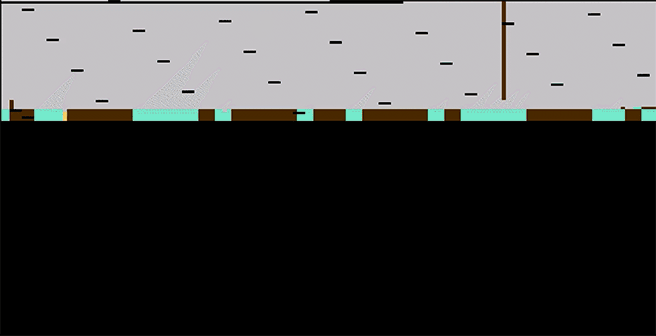

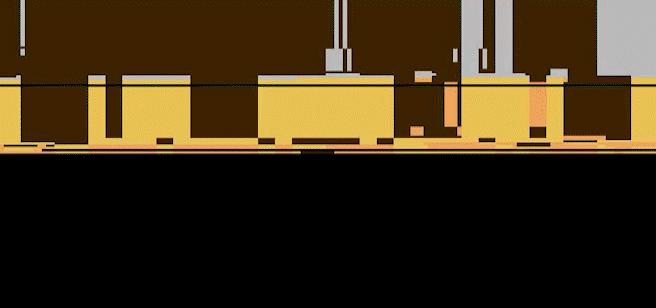

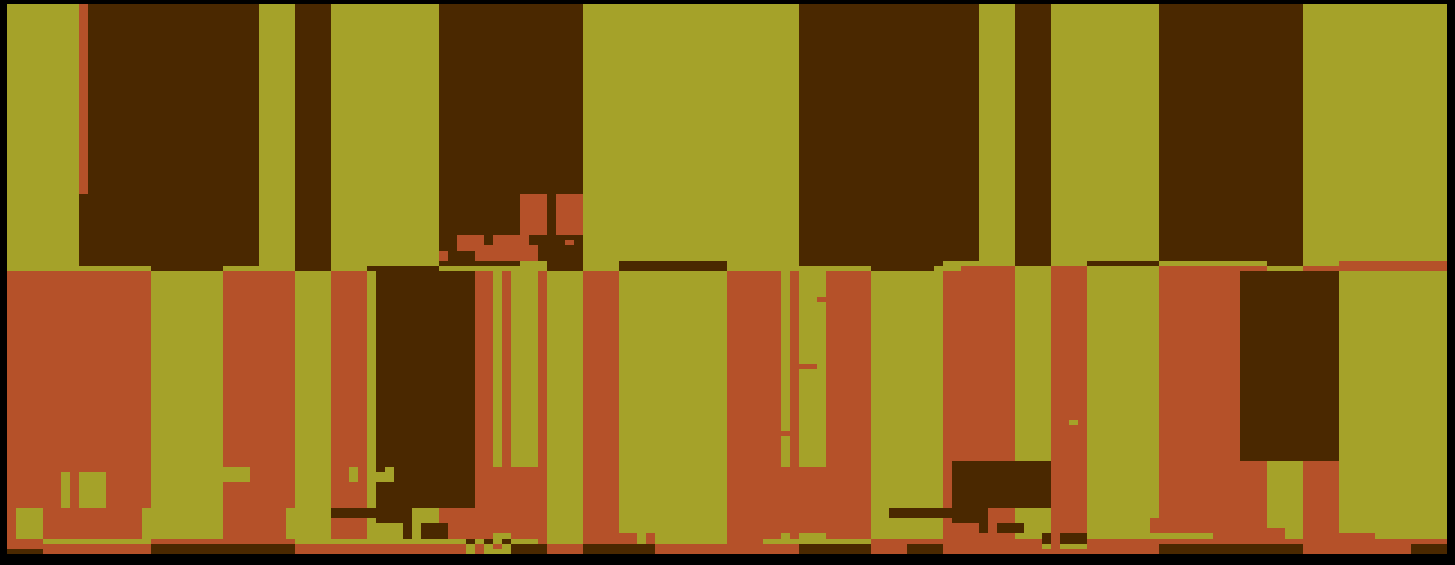

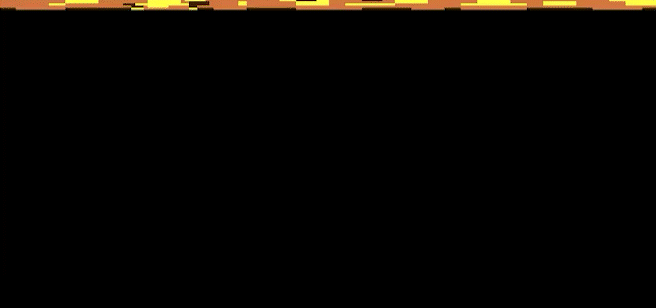

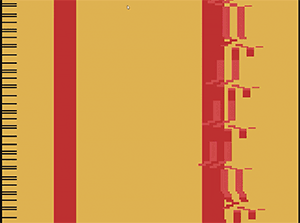

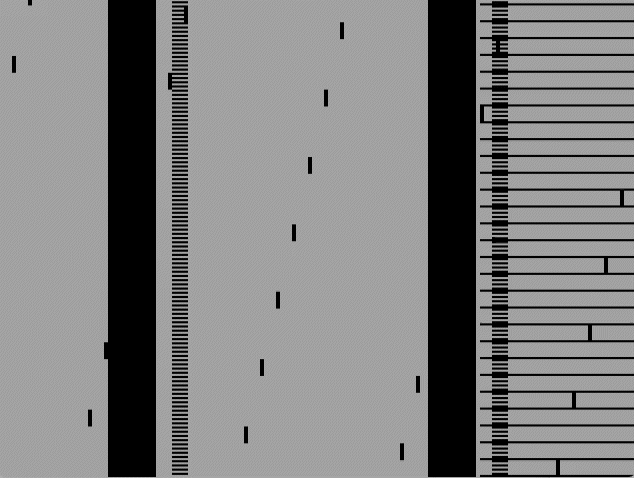

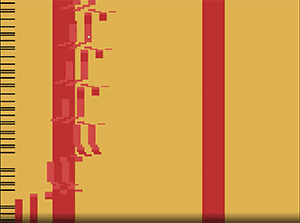

Because no one reads below the fold, here’s an interactive emulator showcasing the most interesting Atari ROMs discovered. There’s no genetic algorithm here; just billions of random files run through an emulator. These are the best of the weird:

WARNING: turn your volume down. There’s a bug in EmulatorJS.

Problem Scope

Assume each Atari 2600 cartridge is a 4 kilobyte chunk of data. It’s a maximum of 4096 bytes, or 32,768 bits. That means there are $2^{32768}$ possible ROMs. For perspective:

If you turned an entire datacenter of AI compute boxes onto this problem, it would likely take years before anything interesting was found. But with a little bit of smarts and actually reading a datasheet, the problem set is massively reduced. The basic search path to finding a ‘random’ Atari game would be to:

  1. Generate a ROM, by dumping 4kB of data from /dev/random into a file.
  2. Run that file in an emulator
  3. Capture a screenshot or five
  4. Filter or score them with AI
  5. Save the best results for further investigation.

This would work, if we had enough time to wait for black holes to devour the Universe. A better idea would be to front-load the pipeline with some simple checks to discard the absolute garbage before spinning up an emulator. It would help to know what a real Atari ROM would look like, simply to build some heuristics.

Heuristics

I’m not going to emulate every possible ROM. I’m trying to find the interesting ones. This means filtering, and being smart about what we’re doing:

Opcode Sanity The 6507 CPU (from here on out I’m calling it a 6502, to make you, specifically, angry) has 151 valid opcodes, and these opcodes are going to be all over the first half of the ROM. First I should check if there are a lot of opcodes in the data. These opcodes are:

0x00, 0x01, 0x05, 0x06, 0x08, 0x09, 0x0A, 0x0D, 0x0E, 0x10, 0x11, 0x15, 0x16, 0x18, 0x19, 0x1D, 0x1E, 0x20, 0x21, 0x24, 0x25, 0x26, 0x28, 0x29, 0x2A, 0x2C, 0x2D, 0x2E, 0x30, 0x31, 0x35, 0x36, 0x38, 0x39, 0x3D, 0x3E, 0x40, 0x41, 0x45, 0x46, 0x48, 0x49, 0x4A, 0x4C, 0x4D, 0x4E, 0x50, 0x51, 0x55, 0x56, 0x58, 0x59, 0x5D, 0x5E, 0x60, 0x61, 0x65, 0x66, 0x68, 0x69, 0x6A, 0x6C, 0x6D, 0x6E, 0x70, 0x71, 0x75, 0x76, 0x78, 0x79, 0x7D, 0x7E, 0x81, 0x84, 0x85, 0x86, 0x88, 0x8A, 0x8C, 0x8D, 0x8E, 0x90, 0x91, 0x94, 0x95, 0x96, 0x98, 0x99, 0x9A, 0x9D, 0xA0, 0xA1, 0xA2, 0xA4, 0xA5, 0xA6, 0xA8, 0xA9, 0xAA, 0xAC, 0xAD, 0xAE, 0xB0, 0xB1, 0xB4, 0xB5, 0xB6, 0xB8, 0xB9, 0xBA, 0xBC, 0xBD, 0xBE, 0xC0, 0xC1, 0xC4, 0xC5, 0xC6, 0xC8, 0xC9, 0xCA, 0xCC, 0xCD, 0xCE, 0xD0, 0xD1, 0xD5, 0xD6, 0xD8, 0xD9, 0xDD, 0xDE, 0xE0, 0xE1, 0xE4, 0xE5, 0xE6, 0xE8, 0xE9, 0xEA, 0xEC, 0xED, 0xEE, 0xF0, 0xF1, 0xF5, 0xF6, 0xF8, 0xF9, 0xFD, 0xFE

Random data has about a 59% chance of being a valid opcode (151 out of 256 possible bytes). Real games should do much better than that. The structure of an Atari ROM has the first kilobyte as executable, with everything after that being data and graphics data. Analysing the full set commercial Atari ROMs reveals $>$ 75% of the first kilobyte should be opcodes.

Reset Vector Tomfoolery Atari ROMs need a valid reset vector to the code’s entry point. In other words, the last two bytes of the code should be between 0xF000 and 0xFFFF. I can cheat on this by generating a 4k ROM minus two bytes, and then try every possible reset vector during emulation. That’s only 4096 times as much work.

Input and Output?! I can look for access to the TIA (Television Interface Adapter) to see if it will output to the screen and the RIOT (RAM-I/O-Timer) to see if it will use any input or output. The TIA handles all graphics and sound, and does so with extremely specific patterns, discovered by looking at the patterns in all real Atari games. The pattern analysis revealed:

The most critical TIA registers games actually use: $02 (WSYNC) - 18.8% of accesses - TV synchronization $1B (GRP0) - 8.4% of accesses - Player 0 graphics $1C (GRP1) - 7.0% of accesses - Player 1 graphics $2A (HMOVE) - 4.9% of accesses - Horizontal movement $0E/$0F (PF1/PF2) - 7.8% combined - Playfield graphics

Instead of blindly counting any store to the TIA range $00-$2F, I look for the specific instruction patterns real games use.

The RIOT registers are more complex due to memory mirroring. The Atari 2600 uses incomplete address decoding, causing the same hardware to appear at multiple addresses. The RIOT chip contains:

In actual ROM files, you’ll find programmers using the shorter mirrored addresses because they’re more efficient. A typical instruction like STA $80 (set timer) appears in the ROM as 85 80 ; STA $80 (zero page addressing) rather than the wasteful 8D 80 02 ; STA $0280 (absolute addressing). My heuristics look for this.

Branches and Jumps We’re looking for games here, and every game has loops and structure. These show up as branch instructions (for loops and conditionals) and jump instructions (for subroutines and major flow control). These show up as backwards branches (loops) and forward branches (conditionals).

Take all of this together, and we can assign some heuristics to validate what counts as a “game”.

Calibrating Against Reality

To validate these heuristics, I analyzed the Atari 2600 Full ROM Collection from the Internet Archive - all 1,530 commercial Atari ROMs ever made. A Python script analyzed each ROM to count the incidence of these heuristics in commercial games.

ROM Characteristics by Metric

Here’s what real Atari games actually look like:

Metric Min 5th % 10th % 25th % Median 75th % 90th % 95th % Max Mean
Valid Opcodes (%) 42.1% 65.6% 70.0% 74.0% 76.0% 77.9% 79.6% 81.4% 90.7% 74.8%
TIA Accesses 12 93 118 186 282 398 567 743 2,847 341
RIOT Accesses 3 34 47 72 111 158 219 287 891 134
RIOT Timer Access 1 22 31 51 78 115 161 211 723 95
RIOT I/O Access 0 8 12 18 28 41 58 74 201 33
Branch Instructions 28 177 200 296 364 528 789 1,066 5,928 457
Jump Instructions 3 37 54 76 111 172 260 351 1,495 142
Unique Opcodes 29 125 129 137 143 148 151 151 151 141

Instruction Distribution

Addressing Modes

Most Accessed TIA Registers

$02 (WSYNC) - 18.8% - TV horizontal sync (critical timing)
$1B (GRP0)  - 8.4%  - Player 0 graphics data
$1C (GRP1)  - 7.0%  - Player 1 graphics data
$2A (HMOVE) - 4.9%  - Horizontal movement strobe
$0E (PF1)   - 4.1%  - Playfield graphics register 1
$0F (PF2)   - 3.7%  - Playfield graphics register 2

RIOT Pattern Analysis

RIOT usage splits into two clear categories:

Timer Operations (78% of RIOT usage)

I/O Operations (22% of RIOT usage)

Composite Scoring (Updated)

The corrected composite score uses realistic weights based on actual game analysis:

Score = (Opcode Ratio × 0.25) +
        (min(TIA_Accesses/150, 1.0) × 0.30) +
        (min(RIOT_Accesses/50, 1.0) × 0.20) +
        (min(Branches/200, 1.0) × 0.15) +
        (min(Jumps/40, 1.0) × 0.10)

Real games scored between 0.393 and 1.004, with an average of 0.853. This composite score helps rank how “game-like” any ROM appears based on multiple characteristics rather than relying on a single metric. The weights prioritize opcodes and graphics capability (TIA) as the most important indicators, with control flow and I/O capability as secondary factors.

Mining Atari Games

The first implementation of this project was extremely simple – a single thread Python script that generated 4kB minus two bytes of random data, counted the number of branches, jumps, the number of valid opcodes, backwards branches (or a loop), and the number of vectors pointing to the ROM. This was very slow, around 300-400 ROMs checked per second.

This is a massively parallel search, though. My GTX 1070 (I know, except I exclusively play TF2, Rocket League, and Kerbal Space Program, nvida plz gib H200 + PCIe SXM5 adapter) has 1,920 CUDA cores compared to my CPU’s 20 cores. More importantly, each CUDA core can independently generate and analyze a ROM simultaneously. Instead of generating ROMs sequentially and passing them through a pipeline, I can generate a million ROMs in parallel, analyze them all at once, and only transfer the promising candidates back to the CPU.

The CUDA implementation moves all the heuristics directly onto the GPU. Each thread generates one 4KB ROM using CUDA’s random number generator, then immediately applies the same analysis pipeline: counting valid opcodes, detecting TIA/RIOT register accesses, finding branch patterns, and calculating the composite score. This was written with the the CuPy library:

"""
CUDA Atari ROM Generator
"""

import cupy as cp
import numpy as np
import time
from pathlib import Path

# Constants
ROM_SIZE = 4094  # Reset vector tested later
BATCH_SIZE = 1024 * 256

# Discovery thresholds based on observed patterns
OPCODE_THRESHOLD = 0.58
TIA_THRESHOLD = 50
RIOT_THRESHOLD = 13
BRANCH_THRESHOLD = 150
JUMP_THRESHOLD = 37
INSTRUCTION_VARIETY = 100
MIN_SCORE = 0.52

# Valid 6502 opcodes (151 total)
VALID_OPCODES = np.array([
    0x00, 0x01, 0x05, 0x06, 0x08, 0x09, 0x0A, 0x0D, 0x0E, 0x10, 0x11, 0x15, 0x16, 0x18,
    0x19, 0x1D, 0x1E, 0x20, 0x21, 0x24, 0x25, 0x26, 0x28, 0x29, 0x2A, 0x2C, 0x2D, 0x2E,
    0x30, 0x31, 0x35, 0x36, 0x38, 0x39, 0x3D, 0x3E, 0x40, 0x41, 0x45, 0x46, 0x48, 0x49,
    0x4A, 0x4C, 0x4D, 0x4E, 0x50, 0x51, 0x55, 0x56, 0x58, 0x59, 0x5D, 0x5E, 0x60, 0x61,
    0x65, 0x66, 0x68, 0x69, 0x6A, 0x6C, 0x6D, 0x6E, 0x70, 0x71, 0x75, 0x76, 0x78, 0x79,
    0x7D, 0x7E, 0x81, 0x84, 0x85, 0x86, 0x88, 0x8A, 0x8C, 0x8D, 0x8E, 0x90, 0x91, 0x94,
    0x95, 0x96, 0x98, 0x99, 0x9A, 0x9D, 0xA0, 0xA1, 0xA2, 0xA4, 0xA5, 0xA6, 0xA8, 0xA9,
    0xAA, 0xAC, 0xAD, 0xAE, 0xB0, 0xB1, 0xB4, 0xB5, 0xB6, 0xB8, 0xB9, 0xBA, 0xBC, 0xBD,
    0xBE, 0xC0, 0xC1, 0xC4, 0xC5, 0xC6, 0xC8, 0xC9, 0xCA, 0xCC, 0xCD, 0xCE, 0xD0, 0xD1,
    0xD5, 0xD6, 0xD8, 0xD9, 0xDD, 0xDE, 0xE0, 0xE1, 0xE4, 0xE5, 0xE6, 0xE8, 0xE9, 0xEA,
    0xEC, 0xED, 0xEE, 0xF0, 0xF1, 0xF5, 0xF6, 0xF8, 0xF9, 0xFD, 0xFE
], dtype=np.uint8)

# Control flow opcodes
BRANCH_OPCODES = np.array([0x10, 0x30, 0x50, 0x70, 0x90, 0xB0, 0xD0, 0xF0], dtype=np.uint8)
JUMP_OPCODES = np.array([0x4C, 0x6C, 0x20], dtype=np.uint8)

def create_lookup_tables():
    """Create GPU lookup tables for ROM analysis"""
    valid_lut = cp.zeros(256, dtype=cp.bool_)
    valid_lut[VALID_OPCODES] = True

    branch_lut = cp.zeros(256, dtype=cp.bool_)
    branch_lut[BRANCH_OPCODES] = True

    jump_lut = cp.zeros(256, dtype=cp.bool_)
    jump_lut[JUMP_OPCODES] = True

    # TIA instruction lookups
    tia_store_lut = cp.zeros(256, dtype=cp.bool_)
    tia_store_lut[[0x85, 0x86, 0x84, 0x95, 0x96, 0x94]] = True

    tia_load_lut = cp.zeros(256, dtype=cp.bool_)
    tia_load_lut[[0xA5, 0xA6, 0xA4, 0xB5, 0xB6, 0xB4]] = True

    tia_abs_lut = cp.zeros(256, dtype=cp.bool_)
    tia_abs_lut[[0x8D, 0x8E, 0x8C, 0xAD, 0xAE, 0xAC]] = True

    # RIOT instruction lookups
    riot_access_lut = cp.zeros(256, dtype=cp.bool_)
    riot_access_lut[[0x85, 0x86, 0x84, 0xA5, 0xA6, 0xA4]] = True

    # Address range masks
    tia_range_mask = cp.arange(256, dtype=cp.uint8) <= 0x2F
    riot_timer_mask = (cp.arange(256, dtype=cp.uint8) >= 0x80) & (cp.arange(256, dtype=cp.uint8) <= 0x87)
    riot_io_mask = (cp.arange(256, dtype=cp.uint8) >= 0x94) & (cp.arange(256, dtype=cp.uint8) <= 0x97)

    return {
        'valid': valid_lut,
        'branch': branch_lut,
        'jump': jump_lut,
        'tia_store': tia_store_lut,
        'tia_load': tia_load_lut,
        'tia_abs': tia_abs_lut,
        'riot_access': riot_access_lut,
        'tia_range': tia_range_mask,
        'riot_timer': riot_timer_mask,
        'riot_io': riot_io_mask
    }

def analyze_roms(roms, lut):
    """Analyze ROMs for game-like patterns"""
    batch_size = roms.shape[0]

    # Opcode analysis
    valid_opcodes_count = cp.sum(lut['valid'][roms], axis=1)
    opcode_ratio = valid_opcodes_count.astype(cp.float32) / ROM_SIZE

    # Control flow analysis
    branch_count = cp.sum(lut['branch'][roms], axis=1)
    jump_count = cp.sum(lut['jump'][roms], axis=1)

    # TIA analysis
    tia_accesses = cp.zeros(batch_size, dtype=cp.int32)

    # Zero page addressing
    tia_store_zp = lut['tia_store'][roms[:, :-1]] & lut['tia_range'][roms[:, 1:]]
    tia_load_zp = lut['tia_load'][roms[:, :-1]] & lut['tia_range'][roms[:, 1:]]
    tia_zp_total = cp.sum(tia_store_zp | tia_load_zp, axis=1)
    tia_accesses += tia_zp_total

    # Absolute addressing
    tia_abs_positions = lut['tia_abs'][roms[:, :-2]]
    tia_abs_targets = lut['tia_range'][roms[:, 1:-1]] & (roms[:, 2:] == 0x00)
    tia_abs_total = cp.sum(tia_abs_positions & tia_abs_targets, axis=1)
    tia_accesses += tia_abs_total

    # RIOT analysis
    riot_accesses = cp.zeros(batch_size, dtype=cp.int32)

    # Timer access
    riot_timer_positions = lut['riot_access'][roms[:, :-1]]
    riot_timer_targets = lut['riot_timer'][roms[:, 1:]]
    riot_timer_hits = cp.sum(riot_timer_positions & riot_timer_targets, axis=1)
    riot_accesses += riot_timer_hits

    # I/O access
    riot_io_positions = lut['riot_access'][roms[:, :-1]]
    riot_io_targets = lut['riot_io'][roms[:, 1:]]
    riot_io_hits = cp.sum(riot_io_positions & riot_io_targets, axis=1)
    riot_accesses += riot_io_hits

    # Unique opcode counting in first 1KB (code section)
    unique_opcodes = cp.zeros(batch_size, dtype=cp.int32)
    first_kb = roms[:, :1024]  # First 1KB where code typically resides

    # Count unique valid opcodes in the code section
    for opcode in VALID_OPCODES:
        has_opcode = cp.any(first_kb == opcode, axis=1)
        unique_opcodes += has_opcode.astype(cp.int32)

    # Composite score
    scores = (
        opcode_ratio * 0.25 +
        cp.minimum(tia_accesses / 150.0, 1.0) * 0.30 +
        cp.minimum(riot_accesses / 50.0, 1.0) * 0.20 +
        cp.minimum(branch_count / 200.0, 1.0) * 0.15 +
        cp.minimum(jump_count / 40.0, 1.0) * 0.10
    )

    # Promising ROM detection
    promising = (
        (opcode_ratio >= OPCODE_THRESHOLD) &
        (tia_accesses >= TIA_THRESHOLD) &
        (riot_accesses >= RIOT_THRESHOLD) &
        (branch_count >= BRANCH_THRESHOLD) &
        (jump_count >= JUMP_THRESHOLD) &
        (unique_opcodes >= INSTRUCTION_VARIETY) &
        (scores >= MIN_SCORE)
    )

    return {
        'scores': scores,
        'opcode_ratio': opcode_ratio,
        'tia_accesses': tia_accesses,
        'riot_accesses': riot_accesses,
        'branch_count': branch_count,
        'jump_count': jump_count,
        'unique_opcodes': unique_opcodes,
        'promising': promising
    }

def save_promising_rom(rom_data, score, rom_id, output_dir):
    """Save promising ROM with: number_score_timestamp.bin"""
    timestamp = int(time.time())
    filename = f"{rom_id:06d}_{score:.3f}_{timestamp}.bin"
    filepath = output_dir / filename

    with open(filepath, 'wb') as f:
        f.write(rom_data.tobytes())

    return filename

def main():
    print("Finite Atari Machine - Streamlined CUDA Generator")
    print("=" * 60)
    print(f"Batch size: {BATCH_SIZE:,} ROMs per batch")
    print(f"ROM size: {ROM_SIZE:,} bytes")
    print()
    print("Thresholds:")
    print(f"  Opcodes: {OPCODE_THRESHOLD:.1%}")
    print(f"  TIA: {TIA_THRESHOLD}+")
    print(f"  RIOT: {RIOT_THRESHOLD}+")
    print(f"  Branches: {BRANCH_THRESHOLD}+")
    print(f"  Jumps: {JUMP_THRESHOLD}+")
    print(f"  Unique opcodes: {INSTRUCTION_VARIETY}+")
    print(f"  Min score: {MIN_SCORE:.2f}")
    print()

    # GPU info
    try:
        gpu_props = cp.cuda.runtime.getDeviceProperties(0)
        gpu_name = gpu_props['name'].decode()
        total_mem = cp.cuda.runtime.memGetInfo()[1] // 1024**2
        print(f"GPU: {gpu_name}")
        print(f"Memory: {total_mem:,} MB")
    except Exception:
        print("GPU: CuPy device detected")

    print("\nInitializing lookup tables...")

    # Setup
    output_dir = Path("finite_atari_roms")
    output_dir.mkdir(exist_ok=True)

    lookup_tables = create_lookup_tables()

    # Statistics
    total_generated = 0
    promising_found = 0
    start_time = time.time()
    last_report = start_time
    best_score_ever = 0.0

    print("Starting ROM generation...")
    print("=" * 60)

    try:
        while True:
            batch_start = time.time()

            # Generate batch of ROMs
            roms = cp.random.randint(0, 256, size=(BATCH_SIZE, ROM_SIZE), dtype=cp.uint8)

            # Analyze ROMs
            analysis = analyze_roms(roms, lookup_tables)

            # Track best score
            current_best = float(cp.max(analysis['scores']))
            if current_best > best_score_ever:
                best_score_ever = current_best

            # Check for promising ROMs
            promising_indices = cp.where(analysis['promising'])[0]

            if len(promising_indices) > 0:
                # Save promising ROMs
                promising_roms = cp.asnumpy(roms[promising_indices])
                promising_scores = cp.asnumpy(analysis['scores'][promising_indices])

                for i in range(len(promising_indices)):
                    filename = save_promising_rom(
                        promising_roms[i], promising_scores[i], promising_found, output_dir
                    )
                    promising_found += 1

            total_generated += BATCH_SIZE
            batch_time = time.time() - batch_start

            # Progress reporting
            current_time = time.time()
            if current_time - last_report >= 4:
                # Get best ROM stats for this batch
                scores = cp.asnumpy(analysis['scores'])
                best_idx = np.argmax(scores)
                best_opcodes = float(analysis['opcode_ratio'][best_idx])
                best_tia = int(analysis['tia_accesses'][best_idx])
                best_riot = int(analysis['riot_accesses'][best_idx])
                best_branches = int(analysis['branch_count'][best_idx])
                best_jumps = int(analysis['jump_count'][best_idx])

                elapsed = current_time - start_time
                rate = total_generated / elapsed
                success_rate = promising_found / total_generated * 100 if total_generated > 0 else 0

                print(f"\rGenerated: {total_generated:,} | Found: {promising_found} | "
                      f"Success: {success_rate:.8f}% | Rate: {rate:,.0f}/sec | "
                      f"Best: {best_score_ever:.3f} | "
                      f"Op:{best_opcodes:.1%} TIA:{best_tia} RIOT:{best_riot} Br:{best_branches} Jmp:{best_jumps}",
                      end="", flush=True)

                last_report = current_time

    except KeyboardInterrupt:
        elapsed = time.time() - start_time
        rate = total_generated / elapsed
        success_rate = promising_found / total_generated * 100 if total_generated > 0 else 0

        print(f"\n\nStopped after {elapsed:.1f} seconds")
        print(f"Total ROMs generated: {total_generated:,}")
        print(f"Promising ROMs found: {promising_found}")
        print(f"Success rate: {success_rate:.8f}%")
        print(f"Average rate: {rate:,.0f} ROMs/second")
        print(f"Best score achieved: {best_score_ever:.4f}")
        print(f"Results saved in: {output_dir}")

if __name__ == "__main__":
    main()

…Which gave me a whopping 60,000 ‘random’ ROMs checked per second. With the heuristics, I was finding one ‘promising’ ROM for every 2.59 million ROMs generated. It’s one ROM every few minutes.

First Results And Why Machine Learning Didn’t Work

After checking billions and billions of potential ROMs, I had a collection of about 10,000 that passed the heuristics laid out above. I could move onto the next step: checking them all in an emulator.

I tried two methods of running these 10,000 ROMs in an emulator to see if there was anything ‘game-like’. The first was a classifier, trained on ~1,500 real commercial Atari ROMs (positives) and ~1,500 GPU-generated random ROMs (negatives). These trained a model (Random Forest) with features ranging from “Would the emulator execute the ROM”, to more pertinate features such as, “how many times did the registers of the TIA change during 2 seconds of execution time.”

This is, academically, the correct way to do this. By scripting in output from Stella, and MAME, I was able to build a classifier that would tell me if a random ROM could run on an Atari. Unfortunately, it didn’t work. The top-scoring results were mostly all black screens when run on an emulator. This made sense when I looked at the model. The most important features were:

Feature Value
execution_time 0.9847
output_lines 0.0086
stdout_length 0.0067
crashed 0.0000
stderr_length 0.0000
video_indicators 0.0000
audio_indicators 0.0000
tia_activity 0.0000
game_indicators 0.0000
error_indicators 0.0000

It was obvious what was happening: I was only selecting for ROMs that ran, not ROMs that did anything interesting. A quick check showed they were just booting into an infinite loop; After booting, there would be a few instructions that did nothing until eventually jumping back to somewhere around the reset vector. In fact, this should be frequently found. Consider the simplest possible Atari program:


; Program starts at $F000

F000: 4C 00 F0   ; JMP $F000 — forever doing nothing

This code starts running at F000, and jumps immediately to that same address. The odds of generating this code are $\frac{1}{256} \times \frac{1}{256} \times \frac{1}{256} = \frac{1}{16,777,216}$. In other words, for every 16 Million ROMs I generate, I will have one that is a valid ROM that does absolutely nothing. I probably generated this ROM several times while generating 30 Billion ROMs. I just don’t care about a program that does nothing.

In short, a classifier on the actual machine code was worthless. Or my training data was. But then again, there’s no training set for Atari games that almost work — just masterpieces and garbage.

Second Results, Finding Anything Interesting

Realizing I only want one thing - interesting visual output - I rewrote the generation pipeline to find interesting ROMs and immediately send them to an emulator to find interesting candidates.

# ==========================================================================
#
#   Finite Atari unified pipeline (4 KB, reset @ $F000) - FIXED VERSION
#
#   This script generates random Atari 2600 ROMs in the GPU via CUDA,
#   Filters them on-GPU with a heuristic, and if interesting, boots
#   them in head-less MAME for 2 s to check if they have dynamic video.
#
#   It is designed to run on a CUDA-capable GPU with MAME installed in PATH.
#
#   The output is saved in the "finite_atari_roms" directory.
#
# ===========================================================================

from __future__ import annotations
import cupy as cp, numpy as np, hashlib, subprocess, tempfile, time, textwrap
from pathlib import Path
from PIL import Image

# ─── 1.  Global constants ────────────────────────────────────────────────────
ROM_SIZE       = 4096
PAYLOAD_BYTES  = ROM_SIZE - 2
RESET_VECTOR   = (0x00, 0xF0)         # little-endian $F000
BATCH_SIZE     = 1024 * 256           # ~256 k ROMs per GPU batch
STATUS_EVERY   = 10                   # batches between status prints
OUTPUT_DIR     = Path("finite_atari_roms"); OUTPUT_DIR.mkdir(exist_ok=True)

# Video thresholds
BLACK_LEVEL          = 15             # 0-255 grey; ≤ this is "black"
NONBLACK_THRESHOLD   = 0.005          # ≥ 0.5 % pixels brighter ⇒ video
DYNAMIC_THRESHOLD    = 0.01           # ≥ 1 % hashed pixels differ ⇒ motion

# Heuristic thresholds (same as your earlier Stella/MAME scripts)
OPCODE_THRESHOLD    = 0.58
TIA_THRESHOLD       = 50
RIOT_THRESHOLD      = 13
BRANCH_THRESHOLD    = 150
JUMP_THRESHOLD      = 37
INSTRUCTION_VARIETY = 100
MIN_SCORE           = 0.52

# ─── 2.  Opcode lookup tables ────────────────────────────────────────────────
# Valid 6502 opcodes for 2600 home-brew context
VALID_OPCODES = np.array([
    0x00,0x01,0x05,0x06,0x08,0x09,0x0A,0x0D,0x0E,0x10,0x11,0x15,0x16,0x18,
    0x19,0x1D,0x1E,0x20,0x21,0x24,0x25,0x26,0x28,0x29,0x2A,0x2C,0x2D,0x2E,
    0x30,0x31,0x35,0x36,0x38,0x39,0x3D,0x3E,0x40,0x41,0x45,0x46,0x48,0x49,
    0x4A,0x4C,0x4D,0x4E,0x50,0x51,0x55,0x56,0x58,0x59,0x5D,0x5E,0x60,0x61,
    0x65,0x66,0x68,0x69,0x6A,0x6C,0x6D,0x6E,0x70,0x71,0x75,0x76,0x78,0x79,
    0x7D,0x7E,0x81,0x84,0x85,0x86,0x88,0x8A,0x8C,0x8D,0x8E,0x90,0x91,0x94,
    0x95,0x96,0x98,0x99,0x9A,0x9D,0xA0,0xA1,0xA2,0xA4,0xA5,0xA6,0xA8,0xA9,
    0xAA,0xAC,0xAD,0xAE,0xB0,0xB1,0xB4,0xB5,0xB6,0xB8,0xB9,0xBA,0xBC,0xBD,
    0xBE,0xC0,0xC1,0xC4,0xC5,0xC6,0xC8,0xC9,0xCA,0xCC,0xCD,0xCE,0xD0,0xD1,
    0xD5,0xD6,0xD8,0xD9,0xDD,0xDE,0xE0,0xE1,0xE4,0xE5,0xE6,0xE8,0xE9,0xEA,
    0xEC,0xED,0xEE,0xF0,0xF1,0xF5,0xF6,0xF8,0xF9,0xFD,0xFE], dtype=np.uint8)

BRANCH_OPCODES = np.array([0x10,0x30,0x50,0x70,0x90,0xB0,0xD0,0xF0], dtype=np.uint8)
JUMP_OPCODES   = np.array([0x4C,0x6C,0x20], dtype=np.uint8)

def create_luts():
    """Return a dict of 256-entry boolean lookup tables (cupy)."""
    lut = {}
    lut["valid"]  = cp.zeros(256, cp.bool_); lut["valid"][VALID_OPCODES]  = True
    lut["branch"] = cp.zeros(256, cp.bool_); lut["branch"][BRANCH_OPCODES] = True
    lut["jump"]   = cp.zeros(256, cp.bool_); lut["jump"][JUMP_OPCODES]     = True

    # 2600 addressing quirks for TIA/RIOT access detection
    lut["tia_store"] = cp.zeros(256, cp.bool_)
    lut["tia_store"][[0x84,0x85,0x86, 0x94,0x95,0x96]] = True   # STY/STA/STX (zp & zp,x)
    lut["tia_load"]  = cp.zeros(256, cp.bool_)
    lut["tia_load" ][[0xA4,0xA5,0xA6, 0xB4,0xB5,0xB6]] = True   # LDY/LDA/LDX (zp & zp,x)
    lut["tia_abs"]   = cp.zeros(256, cp.bool_)
    lut["tia_abs"  ][[0x8C,0x8D,0x8E, 0xAC,0xAD,0xAE]] = True   # abs versions

    lut["riot_acc"]  = cp.zeros(256, cp.bool_)
    lut["riot_acc"][[0x84,0x85,0x86, 0xA4,0xA5,0xA6]] = True

    addr = cp.arange(256, dtype=cp.uint8)
    lut["tia_range"] = addr <= 0x2F
    lut["riot_tmr"]  = (addr >= 0x80) & (addr <= 0x87)
    lut["riot_io"]   = (addr >= 0x94) & (addr <= 0x97)
    return lut

# ─── 3.  GPU heuristic filter ────────────────────────────────────────────────
def analyse_batch(roms: cp.ndarray, lut) -> tuple[np.ndarray, cp.ndarray]:
    """
    Return (interesting_mask, scores) for a 2-D uint8 array of ROMs.
    Each row = one ROM.
    """
    valid_cnt    = cp.sum(lut["valid"][roms], axis=1)
    opcode_ratio = valid_cnt.astype(cp.float32) / ROM_SIZE
    branch_cnt   = cp.sum(lut["branch"][roms], axis=1)
    jump_cnt     = cp.sum(lut["jump"  ][roms], axis=1)

    # --- TIA accesses --------------------------------------------------------
    tia_acc  = cp.sum((lut["tia_store"][roms[:,:-1]] | lut["tia_load"][roms[:,:-1]])
                      & lut["tia_range"][roms[:,1:]], axis=1)
    tia_acc += cp.sum(lut["tia_abs"][roms[:,:-2]]
                      & lut["tia_range"][roms[:,1:-1]]
                      & (roms[:,2:] == 0x00), axis=1)

    # --- RIOT accesses -------------------------------------------------------
    riot_acc  = cp.sum(lut["riot_acc"][roms[:,:-1]] & lut["riot_tmr"][roms[:,1:]], axis=1)
    riot_acc += cp.sum(lut["riot_acc"][roms[:,:-1]] & lut["riot_io" ][roms[:,1:]], axis=1)

    # --- Opcode diversity in first 1 KB --------------------------------------
    uniq = cp.zeros(roms.shape[0], dtype=cp.int32)
    first_kb = roms[:, :1024]
    for op in VALID_OPCODES:
        uniq += cp.any(first_kb == op, axis=1)

    scores = (opcode_ratio * 0.25 +
              cp.minimum(tia_acc / 150.0, 1.0) * 0.30 +
              cp.minimum(riot_acc / 50.0, 1.0)  * 0.20 +
              cp.minimum(branch_cnt / 200.0, 1.0) * 0.15 +
              cp.minimum(jump_cnt / 40.0, 1.0)   * 0.10)

    interesting = ((opcode_ratio >= OPCODE_THRESHOLD) &
                   (tia_acc      >= TIA_THRESHOLD) &
                   (riot_acc     >= RIOT_THRESHOLD) &
                   (branch_cnt   >= BRANCH_THRESHOLD) &
                   (jump_cnt     >= JUMP_THRESHOLD) &
                   (uniq         >= INSTRUCTION_VARIETY) &
                   (scores       >= MIN_SCORE))

    return interesting, scores

# ─── 4.  Lua helper script (snapshot two frames) - FIXED ────────────────────
SNAPSHOT_LUA = textwrap.dedent("""
    local s = manager.machine.screens[":screen"]
    local frame_count = 0
    emu.register_frame_done(function ()
        frame_count = frame_count + 1
        if     frame_count == 1  then s:snapshot("first.png")
        elseif frame_count == 60 then s:snapshot("second.png"); manager.machine:exit() end
    end, "snapper")
""")

# ─── 5.  Video analysis helpers ──────────────────────────────────────────────
def _hash16(img: Path) -> str:
    with Image.open(img) as im:
        im = im.convert("L").resize((16,16), Image.NEAREST)
        return hashlib.sha1(im.tobytes()).hexdigest()

def _frame_is_nonblack(img: Path) -> bool:
    with Image.open(img) as im:
        g = np.asarray(im.convert("L"))
    return (g > BLACK_LEVEL).mean() >= NONBLACK_THRESHOLD

def rom_video_flags(rom: bytes, *, mame="mame", seconds=2.0) -> tuple[bool,bool]:
    """
    Returns (has_video, is_dynamic).
    • has_video  → first frame not black
    • is_dynamic → ≥ 1 % hashed pixels differ between frame 1 and 60
    """
    with tempfile.TemporaryDirectory() as td_s:
        td = Path(td_s)
        (td / "test.bin").write_bytes(rom)
        (td / "snapshot.lua").write_text(SNAPSHOT_LUA)

        base = [mame, "a2600", "-cart", "test.bin",
                "-seconds_to_run", str(seconds),
                "-nothrottle", "-window", "-sound", "none", "-skip_gameinfo"]

        for flag in ("-autoboot_script", "-script"):
            try:
                subprocess.run(base + [flag, "snapshot.lua"],
                               cwd=td, stdout=subprocess.DEVNULL,
                               stderr=subprocess.DEVNULL, timeout=seconds*5,
                               check=True)
                break
            except (subprocess.CalledProcessError, subprocess.TimeoutExpired):
                if flag == "-autoboot_script":
                    continue
                return (False, False)

        # Check both root directory and snap subdirectory for frames
        f1, f2 = td / "first.png", td / "second.png"
        snap_dir = td / "snap"
        if not f1.exists() and snap_dir.exists():
            snap_f1 = snap_dir / "first.png"
            snap_f2 = snap_dir / "second.png"
            if snap_f1.exists():
                f1 = snap_f1
            if snap_f2.exists():
                f2 = snap_f2

        if not f1.exists():
            return (False, False)

        nonblack = _frame_is_nonblack(f1)
        if not nonblack or not f2.exists():
            return (nonblack, False)

        diff_bits = bin(int(_hash16(f1),16) ^ int(_hash16(f2),16)).count("1")
        dynamic = diff_bits / 256.0 >= DYNAMIC_THRESHOLD
        return (nonblack, dynamic)

# ─── 6.  ROM generator ───────────────────────────────────────────────────────
def generate_batch(n: int) -> np.ndarray:
    payload = np.random.randint(0, 256, size=(n, PAYLOAD_BYTES), dtype=np.uint8)
    reset   = np.tile(np.array(RESET_VECTOR, dtype=np.uint8), (n,1))
    return np.hstack((payload, reset))

# ─── 7.  Main loop ───────────────────────────────────────────────────────────
def main():
    lut = create_luts()
    tot_gen = tot_int = tot_vid = tot_dyn = 0
    batch_idx = 0
    start = time.perf_counter()

    try:
        while True:
            roms_cpu = generate_batch(BATCH_SIZE); tot_gen += BATCH_SIZE

            roms_gpu = cp.asarray(roms_cpu)
            keep, _ = analyse_batch(roms_gpu, lut)
            keep = keep.get(); del roms_gpu
            interesting = roms_cpu[keep]
            tot_int += len(interesting)

            for rom in interesting:
                has_vid, is_dyn = rom_video_flags(rom.tobytes())

                # Save if EITHER condition is true
                if has_vid or is_dyn:
                    sha = hashlib.sha1(rom).hexdigest()[:12]
                    (OUTPUT_DIR / f"{sha}.bin").write_bytes(rom.tobytes())

                # Separate bookkeeping
                if has_vid:
                    tot_vid += 1           # first frame not black
                if is_dyn:
                    tot_dyn += 1           # animation detected

            batch_idx += 1
            if batch_idx % STATUS_EVERY == 0:
                elapsed = time.perf_counter() - start
                rate = int(tot_gen / elapsed) if elapsed else 0
                print(f"{tot_gen:,d} generated | "
                      f"{tot_int:,d} interesting | {tot_vid:,d} with video | "
                      f"{tot_dyn:,d} dynamic | {rate:,d} ROM/s", flush=True)

    except KeyboardInterrupt:
        pass  # graceful exit

    elapsed = time.perf_counter() - start
    rate = int(tot_gen / elapsed) if elapsed else 0
    print("─"*72)
    print(f"TOTAL: {tot_gen:,d} generated | {tot_int:,d} interesting | "
          f"{tot_vid:,d} with video | {tot_dyn:,d} dynamic | {rate:,d} ROM/s")

if __name__ == "__main__":
    main()

This script generates 4kB of random data, then filters them for heuristics on the GPU. On an Nvidia GeForce GTX 1070, this generates about 62,150 ROMs/s. Filtering for the heuristics, I get one “interesting” ROM – one that passes the heuristics – for every 2.5 Million ROMs generated.

From there, the interesting ROMs are sent to the CPU, where they’re checked with MAME for visual output. Here’s an example of the output after being run overnight:

TOTAL: 1,804,075,008 generated | 456 interesting | 16 with video | 11 dynamic | 62,156 ROM/s

Out of 1.8 Billion ROMs generated, only 456 passed the heuristics test. Of those, 16 had a static video output, 11 had video that moved. You have no idea how much I’m resisting a making a Sankey diagram/fluffer joke right now.

What I found

These are some of the most visually interesting results from this experiment. All of these ROMs were generated entirely from random data, filtered with heuristics, and run through an Atari emulator. All of these produce valid video output and show dynamic or structured data.

A Real, Actual, Protogame

Despite my entire pipeline being focused on generating visual output, I discovered something that is more than just weird visual ouput. The ROM I’m calling 51014 (here’s a link to the actual ROM file) displays some game-like behavior. It’s an infinite loop of visual output that responds to human input. Take a look at the .gifs below:

51014 without using the controller
51014 without using the controller
5104, pressing Up on the joystick a few times
51014, pressing Up on the joystick a few times

Rom 51014 consists of a yellow background with two static vertical red stripes on the screen. There is also a third stripe – actually a pair of red stripes – that is not static; it looks like it’s tearing every few scanlines. By pressing Up on the joystick, that torn pair of stripes stays still. It’s input being translated into visual output.

It’s certainly not impressive from a programming point of view, but considering the fact it was generated only out of properly filtering random data is crazy. Combine a few more of these into a single rom and you have a game!

Future Work?

I targeted the Atari 2600 for a reason. It’s dead simple, there are no memory mappers or program and character ROMs, and it doesn’t have the ‘Nintendo Logo copy protection’ the original Game Boy has. Basically, if you throw random bytes at an Atari, something is going to fall out, which I have proven here.

But others have suggested other platforms to target, like the NES or Game Boy. These will not work as well as the 2600 for a few reasons.

The NES is much more complex, with memory mappers required for nearly any game. You can’t just drop random bytes into the ROM and expect anything. Rather, you could but it would take much longer than waiting for an Atari game. The NES uses split character and program ROMs for code and graphics. These are stored separately. You could dump garbage into a CHR ROM while keeping the PRG of Tetris, but you’d just get static. Reverse it with the PRG of Mario 3 and maybe you’ll see a quarter of a Mario sprite flicker once.

The Game Boy requires a 48-byte Nintendo logo at a hardcoded location in the ROM. Sure, you could brute-force this by just slapping it in after being generated, but there’s a whole boot ROM that must complete successfully before anything happens. And there’s bank switching chips to consider.

In contrast, the Atari 2600 is astonishingly stupid. It boots straight into ROM with zero safeguards. It will send video after nine instructions. Something is going to fall out if you shake it enough.

There’s also the possibility of using more advanced machine learning models or even an LLM to generate Atari games. This, I think, misses the point. Training an LLM on the thousand or so commercial Atari games would would only produce something like a commercial Atari game, if anything at all. My method of generating random data, then filtering with some basic heuristics, then actually running the thing to see if there’s any output is the best way to produce something out of randomness. My goal isn’t just to make a playable game, it’s to make a playable game out of randomness.

If I take this further, it would be as a distributed computing project, something like SETI@Home, where millions of machines search for signals in cosmic noise. Imagine GPUs across the world mining entropy for Atari games, then sending the promising ones to a central system to evaluate their ‘game-ness’. It’s an absurd idea. I’ll see how popular this project gets. It’s better than mining fartcoin, at least.

A Conclusion

It was the best of times, it was the blurst of times?
It was the best of times, it was the blurst of times?

The idea that I could pull random video games out of the ether is absurd at first, but I knew this would work before I began. I can describe this in both as a philosophical / thought experiment, and as a technical inevitability.

What I'm doing is not Infinite Monkey Theorem. A million monkeys will eventually produce the works of Shakespeare, that's true, but it would take longer than any time the Universe has left. I'm not asking monkeys to produce the works of Shakespeare, I'm asking them to produce any work.

Producing the word ‘banana’ in ASCII is just $\frac{1}{256}^6 = \frac{1}{281{,}474{,}976{,}710{,}656}$ or once every 300 trillion monkeys. But I’m not looking for ‘banana’, I’m just looking for a word. Any word in the dictionary. I don’t care if I’m not generating Yar’s Revenge. I just want something that runs on an Atari. That’s significantly easier.

The technical reason why I knew this would work is the simplicity of the Atari. The simplest thing you could ever create on an Atari looks something like this:


; Program starts at $F000

F000: A9 84       ; LDA #$84        - Load a color value (red/orange)
F002: 85 09       ; STA $09         - Store to COLUBK (background color register)
F004: 85 02       ; STA $02         - Store to WSYNC (wait for horizontal sync)
F006: 4C 04 F0    ; JMP $F004       - Jump back to the WSYNC line (infinite loop)

That’s nine instructions. In fact, we can do the math on that, too. It would have to start with A9, and then it could be any one of 128 total colors. Then it’s 85 09 to store the background color, 85 02 to wait for WSYNC, and 4C 04 F0 for the jump back to the previous instruction. It’s $\frac{1}{256} \times \frac{128}{256} \times \frac{1}{256} \times \frac{1}{256} \times \frac{1}{256} \times \frac{1}{256} \times \frac{1}{256} \times \frac{1}{256} \times \frac{1}{256} = \frac{1}{36{,}893{,}488{,}147{,}419{,}103{,}232}$, or about 36 Pentillion. There are nearly infinite variations on this code though, so after a few Billion ROMs tested, I’m bound to get something for my efforts.

You can find all the code for this in the Finite Atari Machine repo

back
